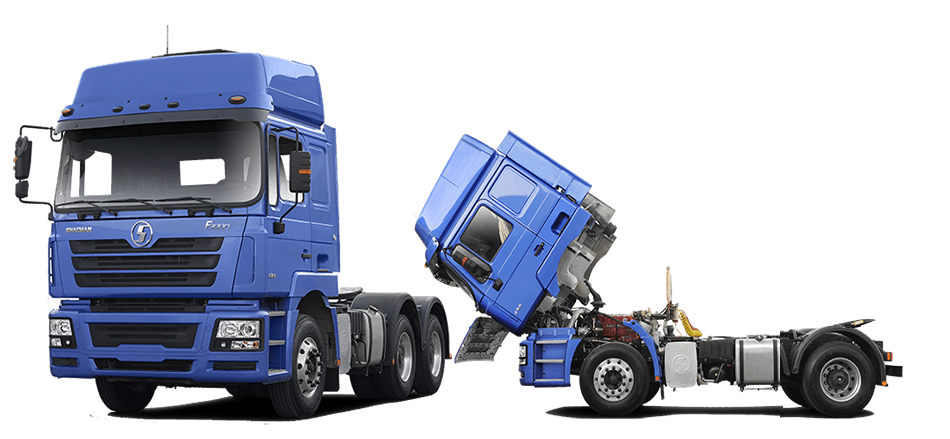

PRODUCTS :.:: Shacman Tractor Head

Drive Type 6 X 4 (model:SX4254JV32) 4 X 2 (model:SX4285JT351) 6 X 4 (model: SX4254JT324)
Engine
Model Weichai WD12.420 Euro II
Max Output Power (kw/hp) 309Kw/420hp
Rated speed(r/min) 2200
Max.torque(N.m) 1750N.m/1300 - 1600r/pm
Type diesel engine,4-stroke,6-cylinder in line,water cooling
Bore/stroke 126mm/155mm
Displacement 11.596L
Compression ratio 17:1
Weichai WP10.380E32 China III
280Kw/380hp
2200
1460N.m/1200 - 1600r/pm
diesel engine,4-stroke,6-cylinder in line,water cooling
126mm/130mm
9.726L
17:1
Weichai WP10.380E32 EuroII
280Kw/380hp
2200
1460N.m/1200 - 1600r/pm
diesel engine,4-stroke,6-cylinder in line,water cooling
126mm/130mm
9.726L
17:1
Transmission
Model Fast 12JS180T, 12 forward and 2 reverse Fast 12JS160T, 12 forward and 2 reverse Fast 12JS160T, 12 forward and 2 reverse
Gear ratio 15.53 12.08 9.39 7.33 5.73 4.46 3.48 2.71 2.10 1.64 1.28 1.00 14.86(R) 3.33(R) 15.53 12.08 9.39 7.33 5.73 4.46 3.48 2.71 2.10 1.64 1.28 1.00 14.86(R) 3.33(R) 15.53 12.08 9.39 7.33 5.73 4.46 3.48 2.71 2.10 1.64 1.28 1.00 14.86(R) 3.33(R)
Clutch Eton C430 diaphragm clutch Eaton
Front Axle MAN 7.5 ton
Rear Axle 13 ton hub reduction drive axle ratio:4.8
Chassis Frame:"["type cross section in vertical,front width 940mm,rear width 780mm
Fuel tank 400L+300L Al.
Steering intergral circuiting ball power steering
C430 diaphragm clutch Eaton
MAN 7.5 ton
13 ton hub reduction drive axle ratio:4.8
Frame:"["type cross section in vertical,width 780mm
400L Al.
intergral circuiting ball power steering
C430 diaphragm clutch Eaton
MAN 7.5 ton
13 ton hub reduction drive axle ratio:4.8
Frame:"["type cross section in vertical,width 780mm
400L + 300L Al.
intergral circuiting ball power steering
Brakes
Running brake Dual circuit compressed air brake
Auxiliary brake Engine exhaust brake
Parking brake Air discharging with spring control
Dual circuit compressed air brake
Engine exhaust brake
Air discharging with spring control
Dual circuit compressed air brake
Engine exhaust brake
Air discharging with spring control
Wheels and Tires 315/80R22.5 11ps tires double coin 315/80R22.5 7ps tires double coin 315/80R22.5 11ps tires
Cabin MAN F2000 lengthen flat roof cabin.one sleeping bed MAN F2000 lengthen flat roof cabin.one sleeping bed MAN F2000 lengthen flat roof cabin.one sleeping bed
Electrics
24
24V,5.58kw
28V,1.54kw
2×12V,135Ah
Cigarette lighter,air horn,headlamp,fog light,turning light,reverse light
24
24V,5.58kw
28V,1.54kw
2×12V,135Ah
Cigarette lighter,air horn,headlamp,fog light,turning light,reverse light
24
24V,5.58kw
28V,1.54kw
2×12V,135Ah
Cigarette lighter,air horn,headlamp,fog light,turning light,reverse light
Dimension (mm)
Wheelbase 3225+1350
Frontwheel track 2036
Rear wheel track  1800
front overhang 1525
Rear overhang 725
overall length 6825
overall width 2490
overall height 3270
3500
2036
1800
1525
995
6020
2490
3270
3225+1350
2036
1800
1525
725
6825
2490
3270
Weight (kg)
total mass 48000
kerb mass 9400
maximum towing mass 50600
front axle laden mass 7500
rear axles laden mass 1300 x 2
43000
7500
35500
7500
13000
48000
9400
50600
7500
13000 x 2
Performance
max.speed(km/h) 89
max.gradeability 34%
Min.Ground clearance 314
Min.Turning diameter 18m
Fuel consumption(L/100km) 41
89
30%
314
16m
39
89
34%
314
18m
41
Others
without A/C
without rear window
white clearance lamps on the sun canopy
Iron bumper/articulated aluminium pedal
headlamp and rear lamp protector
water tank protector
HX front tow hook(double)
two parking wedges
two triangle warnings
two warning lights
Seat with air sac
fuel oil security alarm
JOST 90# saddle
roof fairing
cab air suspension
front wheels fender
rear wheels fender, triple unitary fender
F3000 radiator
Fleetguard air filter
without A/C
without rear window
white clearance lamps on the sun canopy
Iron bumper/articulated aluminium pedal
headlamp and rear lamp protector
water tank protector
HX front tow hook(double)
two parking wedges
two triangle warnings
two warning lights
Seat with air sac
fuel oil security alarm
JOST 50# saddle
roof fairing
cab air suspension
front wheels fender
rear wheels fender, triple unitary fender
F2000 radiator
Fleetguard air filter
without A/C
without rear window
white clearance lamps on the sun canopy
Iron bumper
headlamp and rear lamp protector
LED rear light
water tank protector
HX front tow hook(double)
two parking wedges
two triangle warnings
two warning lights
8kg extinguisher
Seat with air sac
fuel oil security alarm
JOST 90# saddle
roof fairing
cab air suspension
front wheels fender
rear wheels fender, triple unitary fender
F2000 radiator
Fleetguard air filter
