PRODUCTS :.:: Shacman Dump

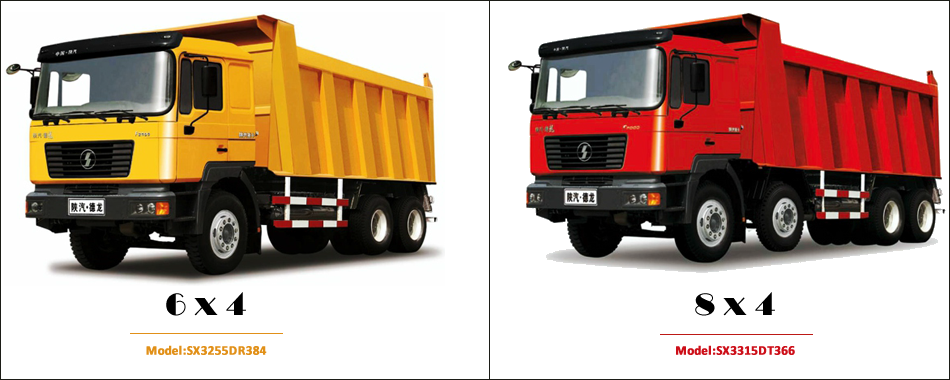

Model   SX3255DR384 SX3315DT366
Drive Type 6 X 4 8 X 4
Engine
Model Weichai WP10.340E32 China III
Max Output Power (kw/hp) 250/340
Rated speed(r/min) 2200
Max.torque(N.m) 1350N.m/1200~1600r/pm
Type diesel engine,4-stroke,6-cylinder in line,water cooling
Bore/stroke 126mm/130mm
Displacement 9.726L
Compression ratio 17:1
Weichai WP10.340E32 China III
280Kw/380hp
2200
1460N.m/1200~1600r/pm
diesel engine,4-stroke,6-cylinder in line,water cooling
126mm/130mm
9.726L
17:1
Transmission
Model Fast RT-11509C, 9 forward and 1 reverse
Gear ratio 12.42 8.29 6.08 4.53 3.36 2.47 1.81 1.35 1.00 12.99(R)
Fast RT-11509C, 9 forward and 1 reverse
12.42 8.29 6.08 4.53 3.36 2.47 1.81 1.35 1.00 12.99(R)
Clutch C430 diaphragm clutch Eaton C430 diaphragm clutch Eaton
Front Axle MAN 7.5 ton STYRE 6.5 ton
Rear Axle 13 ton hub reduction drive axle ratio:4.8 16 ton hub reduction drive axle ratio:4.8
Chassis Frame:"["type cross section in vertical,width 850mm Frame:"["type cross section in vertical,width 850mm
Fuel tank 380L steel 380L steel
Steering intergral circuiting ball power steering intergral circuiting ball power steering
Brakes
Running brake Dual circuit compressed air brake
Auxiliary brake Engine exhaust brake
Parking brake Air discharging with spring control
Dual circuit compressed air brake
Engine exhaust brake
Air discharging with spring control
Tires 12.00R20 11ps tires doule coin 12.00R20 13ps tires double coin
Cabin MAN F2000 middling length flat roof cabin.one sleeping bed MAN F2000 middling length flat roof cabin.one sleeping bed
electrics
Volts 24
Starter 24V,5.58kw
Generator 28V,1.54kw
Battery 2×12V,135Ah
  Cigarette lighter,air horn,headlamp,fog light,turning light,reverse light
24
24V,5.58kw
28V,1.54kw
2×12V,135Ah
Cigarette lighter,air horn,headlamp,fog light,turning light,reverse light
Dimension
Wheelbase (mm) 3800+1350
Frontwheel track (mm) 2036
Rear wheel track  (mm) 1860
front overhang (mm) 1525
Rear overhang (mm) 1654
overall length (mm) 8329
overall width (mm) 2490
overall height (mm) 3450
cargo body(L×W×H) (mm) 5600×2300×1300
1800+3600+1350
1939
1860
1525
2054
10329
2490
3450
7600×2300×1500
Weight(kg)
total mass 32500
kerb mass 14500
max.laden mass 18000
front axle laden mass 27500
rear axles laden mass 1300 x 2
45000
17500
27500
6500×2
16000 x 2
Performance
max.speed(km/h) 93
kerb mass 14500
max.gradeability 32%
Min.Ground clearance 314
Min.Turning diameter 18m
Fuel consumption(L/100km 38
93
17500
30%
314
32m
40
Others
without A/C
without rear window
white clearance lamps on the sun canopy
Iron bumper/articulated aluminium pedal
headlamp and rear lamp protector
water tank protector
HX front towing hook(double)
two parking wedges
two triangle warnings
8kg extinguisher
oil security alarm
Fleetguard air filter
LED rear lamp
without A/C
without rear window
white clearance lamps on the sun canopy
Iron bumper/articulated aluminium pedal
headlamp and rear lamp protector
water tank protector
HX front towing hook(double)
two parking wedges
two triangle warnings
8kg extinguisher
oil security alarm
Fleetguard air filter
LED rear lamp
