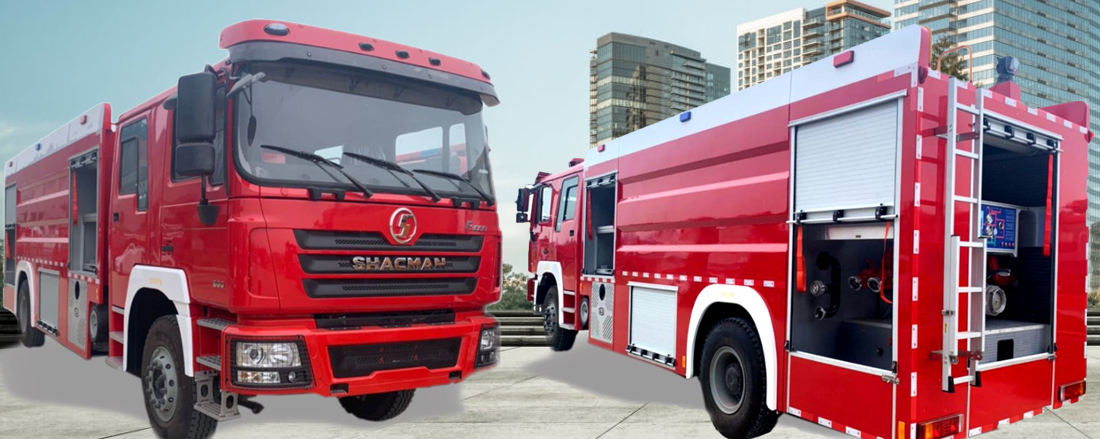

PRODUCTS :.:: Shacman Fire Trucks


TYPE

FIRE TRUCK F2000 - 14,000 LITRES

FIRE TRUCK L3000 - 10,000 LITRES

Chassis model

SHACMAN F2000

SHACMAN L3000

Cab F2000 double row cab, with power steering, with A/C L3000 double row cab, with power steering
Driving Type 6*4 Left hand driving 4*2 Left hand driving
Max Speed (km/h) 90 90
Overall dimension(mm) 10655x2500x3540mm 8250x2500x3390
GVW(kg) 25000 14800
Mass in working order (kg) 11000 7150
Wheelbase(mm) 4375+1400 5000
F/R track base (mm) 1500/3205 1935/1800
Approach/Departure Angel 14/11 17/9
Tire 12R22.5 10.00R20
Clutch Single-plate dry diaphragm spring clutch Single-plate dry diaphragm spring clutch
Steering Hydraulic steering with power assistance Hydraulic steering with power assistance
Gear box 9-speed 8JS85T
Bridge
Front axle MAN 7.5T
Rear axle STR 13T*2
Front axle 4.8T
Rear axle 10T
Engine
Model WP10.290E32(Euro 2)
Fuel Type Diesel fuel
Type Water-cooled six-stroke,, direct injection, turbocharged
Exhaust(ml) 9726
power/ hp 290
Model WP6.210E32(Euro 2)
Fuel Type Diesel fuel
Type Water-cooled six-stroke,, direct injection, turbocharged
Exhaust(ml) 6750
power/ hp 210
Braking system
Service Brake Compressed air brake
Park Brake Spring energy
Auxiliary brake engine exhaust brake
Service Brake Compressed air brake
Park Brake Spring energy
Auxiliary brake engine exhaust brake
Electric system 24V 24V


Upper-Body specification


Cabin SHACMAN double cabin, four doors SHACMAN double cabin, four doors
Liquid tanker
Volume 10000L water tank+4000L foam tank
Material high quality carbon steel plate,\ anti-rust treatment inside.
Model PL48
Volume 8000L water tank+2000L foam tank
Material high quality carbon steel plate,\ anti-rust treatment inside.
Model PL48
Water cannon
Rotate degree 360 degree
Fluent 48L/s
Range water max 60m, foam max 55m
Rotate degree 360 degree
Fluent 48L/s
Range water max 60m, foam max 55m
Fire fighting pump
Model CB10/60
Pressure: 1.0Mpa
Flux: Water 60L/S, foam 48L/S
Suction depth :≥ 7m
Suction time ≤35s
Model CB10/60
Pressure: 1.0Mpa
Flux: Water 60L/S, foam 48L/S
Suction depth :≥ 7m
Suction time ≤35s
Fire fighting nozzle
Model: SP30
Range: Max 55m(Foam max 50m)
Fire hose 26m
Sprinkler Max 10m
working pressure ≤1.0(Mpa)
Horizontal rotation angle 360 º
Model: SP30
Range: Max 55m(Foam max 50m)
Fire hose 26m
Sprinkler Max 10m
working pressure ≤1.0(Mpa)
Horizontal rotation angle 360 º
Water pipes
Suction (cm) DN 10 (Φ 10cm)
Delivery(cm) DN 6.3(Φ 6.3cm)
Connection(cm) DN 6.3(Φ 6.3cm)
Suction (cm) DN 10 (Φ 10cm)
Delivery(cm) DN 6.3(Φ 6.3cm)
Connection(cm) DN 6.3(Φ 6.3cm)
Foam System Performance
Water & Foam liquid radio Foam above 6 to 7%
Expansion Ration(20 deg C) ≥ 6
Water absorption rate(min) (20 deg C) 30L/s
Water & Foam liquid radio Foam above 6 to 7%
Expansion Ration(20 deg C) ≥ 6
Water absorption rate(min) (20 deg C) 30L/s
Color

The whole vehicle is red for fire fighting.

The whole vehicle is red for fire fighting.

Other Has truck rear ladder Has truck rear ladder


OTHER SPARE PARTS

Water tanker fire truck equipment table


Item Name Model Unit Quantity
1 straw 4m set 2
2 Water filter   set 1
3 Two water   set 1
4 Fire hose type 13 80 set 4
5 Fire hose type 13 65 set 6
6 Water collector   set 1
7 Waiste ax   set 1
8 Water covered cloth   set 4
9 Water protection bridge   set 2
10 Water hook   set 4
11 Ground fire hydrant wrench   set 1
12 Underground fire hydrant wrench   set 1
13 Suction pipe wrench   set 2
15 Fire bucket   set 1
16 DC water gun   set 1
18 Multifunctional water gun   set 1
19 Fire ax   set 1
20 Fire shovel   set 1
21 Iron collars   set 1
22 Fire ho   set 1
23 Reducing interface   set 1
24 Vehicle tools   set 1
Item Name Model Unit Quantity
1 straw 4m set 2
2 Water filter   set 1
3 Two water   set 1
4 Fire hose type 13 80 set 4
5 Fire hose type 13 65 set 6
6 Water collector   set 1
7 Waiste ax   set 1
8 Water covered cloth   set 4
9 Water protection bridge   set 2
10 Water hook   set 4
11 Ground fire hydrant wrench   set 1
12 Underground fire hydrant wrench   set 1
13 Suction pipe wrench   set 2
15 Fire bucket   set 1
16 DC water gun   set 1
18 Multifunctional water gun   set 1
19 Fire ax   set 1
20 Fire shovel   set 1
21 Iron collars   set 1
22 Fire ho   set 1
23 Reducing interface   set 1
24 Vehicle tools   set 1
